TLM Wiki
The Wiki is our most compact Horizontal Form Fill and Seal machine yet doesn’t sacrifice functionality – with a range of standard and option features available.
- Siemens digital controls & touch screen
- Servo motor driven (3 Motors)
- One fixed or adjustable forming box
- Straight cutting blade
Product Details
- Built in Italy, backed by Tomric support and service
- Designed from the ground up to be easy to use and maintain
- All digital servo motors and touch screens
- 2 year warranty on all machines
- Equipment all on site in Tomric’s Innovation Center, available for training and product testing
Features

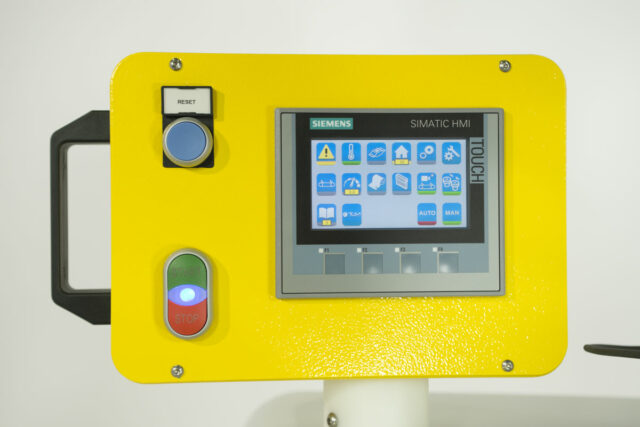

- Siemens digital controls & touch screen
- Servo motor driven (3 Motors)

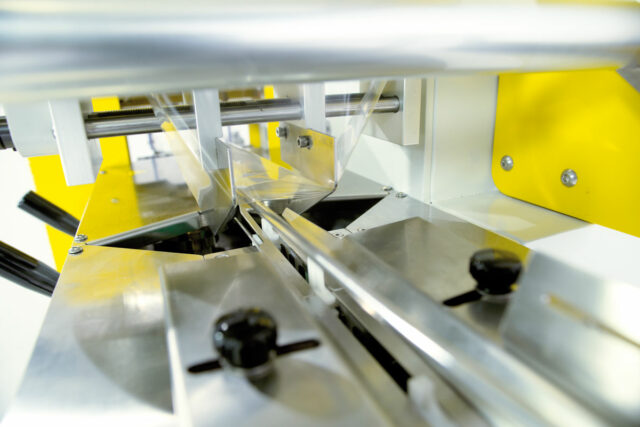

- One fixed or adjustable forming box
- Straight cutting blade
- Laser eye to detect your printed film

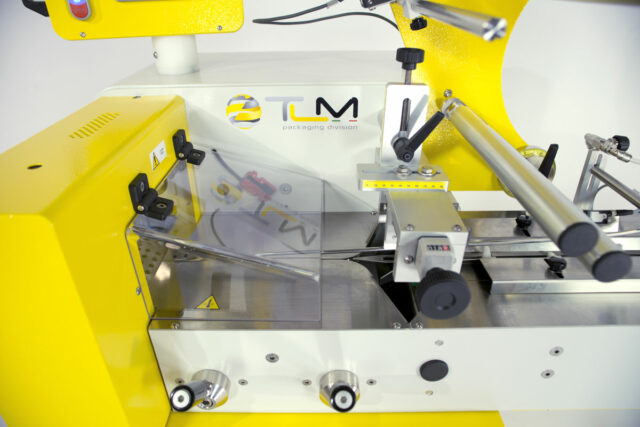

- Piece counter
- Rotary sealing system
Technical Information
Max Speed
90ppm
Max Product Width
120mm (4.7")
Max Product Height
50mm (1.9")
Bag Length
60mm (2.3") to 300mm (11.8")
Electrical Specs
220V, 6 amp (3000 watts)
60hz
Three-phase or Single-phase
60hz
Three-phase or Single-phase
