Selmi Tunnel 300/400

Item Code: A-1300T

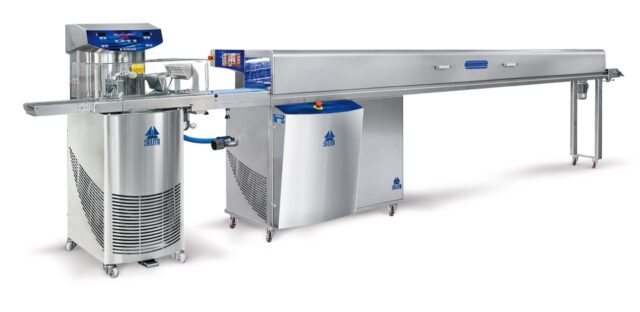

This Selmi Enrobing Unit cools chocolate-enrobed and molded goods using an air diffuser located along the whole length of the cooling chamber.
  • Built-in Enrober
  • All digital touchscreen controls
  • Digital controls for belt speed, heaters, and force of the air from the air knife
  • Speed adjustable from 100cm (39.3”) per min to 2m (78.7”) per min

Product Details

This Selmi Enrobing Unit cools chocolate-enrobed and molded goods using an air diffuser located along the whole length of the cooling chamber. Productivity speed ranges from 12 – 78 in/min (30 – 200 cm/min). Stainless steel construction, equipped with a double chocolate curtain, loading and operating section and a blower to remove excess chocolate. The chocolate enrobing belt speed works independently from the cooling tunnel belt speed.

Features

  • Built-in Enrober
  • All digital touchscreen controls
  • Digital controls for belt speed, heaters, and force of the air from the air knife
  • Speed adjustable from 100cm (39.3”) per min to 2m (78.7”) per min
  • Cooling system designed to create environment from 48F to 63F

Technical Information

Optimum Room Temperature
68°/77° F, 89.6° max (20/25°C, 32°C max)
Power Requirements
220V, 3 phase (400V, 3 phase, 50 Hz)
Usable Belt Width
7.87" (200/250 mm)
Dimensions
w: 33.46″ x l: 9.84′ x h: 61″
Electrical Specifications
220v, 16 amp (60hz)
Three Phase / NEMA L15-20P plug
